Displaying the mass in MS scan window r bagshaw  2015-05-13 06:15

Hi,
For untargeted small molecule work in Skyline, it would be handy when one clicks on the chromatogram trace to show the MS scan spectrum that the mass of the monoisotopic peak is displayed above the peak (kind of like what happens in xcalibur). Maybe there are options for number of decimal places, maybe even chemical composition? Right now to obtain the actual mass, I have to zoom in quite closely to get the x-axis to display the m/z to 4 or 5 decimal places and then read the mass from there.
Thanks!
--Rick

P.S. I mistakenly posted this request in another request forum.


Brendan MacLean responded:  2015-05-13 06:58
Hi Rick,
Thanks for the feedback. Would you mind posting a screenshot of exactly the view you are talking about. Ideally, you could use an image editor to show exactly what you would like to see instead of what you see now.

I think I understand, but the image would definitely help.

Thanks again for your interest in using the new Skyline small molecule support.

--Brendan

r bagshaw responded:  2015-05-13 08:05

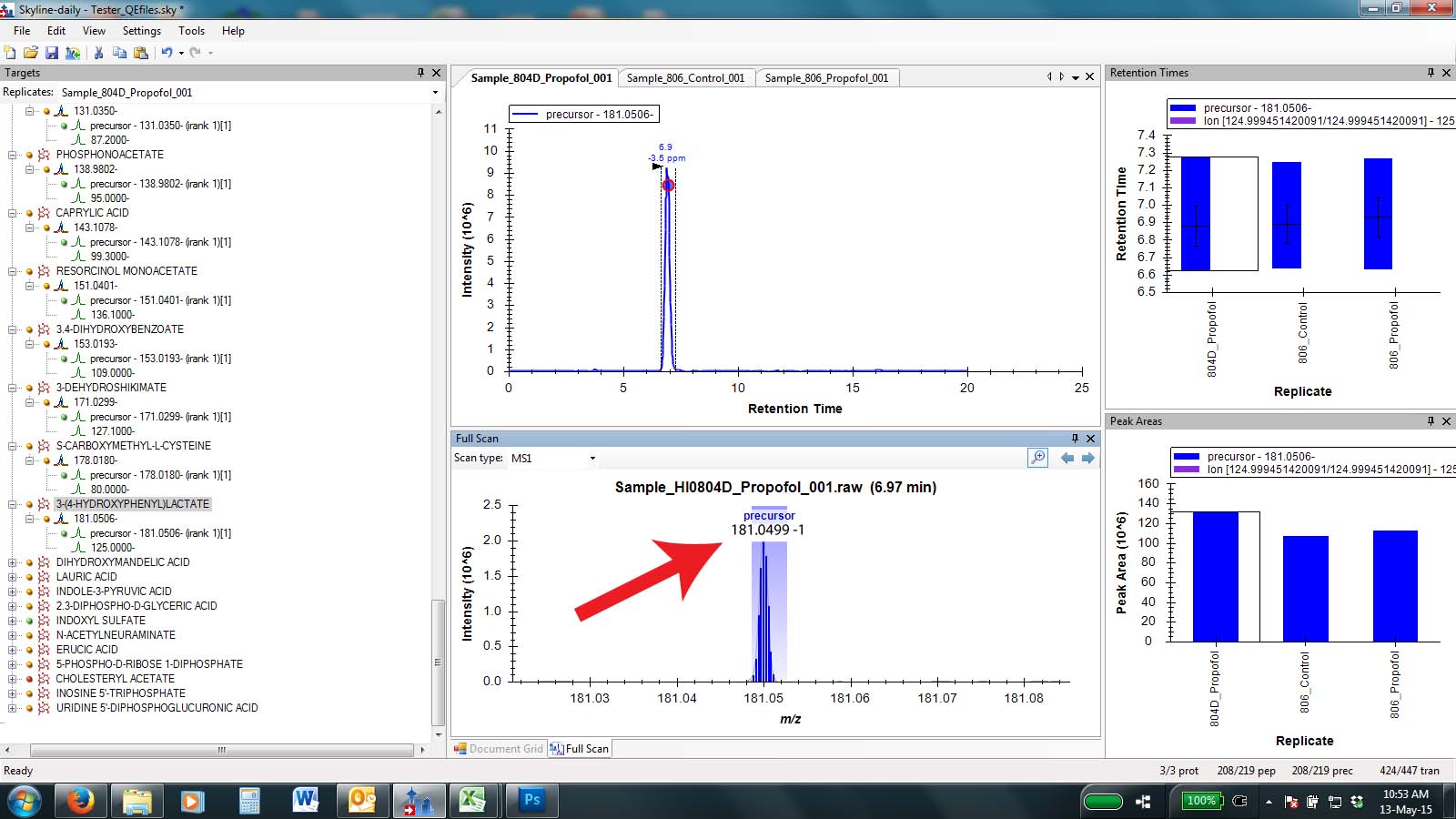

Thanks, Brendan. Here you go!

Brendan MacLean responded:  2015-05-13 10:08
Hi Rick,
Thanks. Pretty much what I imagined. One more question, though: would the m/z value be the raw m/z of the most intense point within the extraction range, or would it be the central m/z from which the PPM mass delta is calculated. They are not the same thing. Although, I think the first option makes a lot of sense, I worry that it will confuse people who try to verify the PPM mass delta by comparing this annotation m/z with the target m/z.

Any further thoughts on this? I suppose we can have the option to display either or both.

--Brendan
